Premade Pouch Packaging Machine with 9 Stations
9-Station Rotary Premade Pouch Packaging Machine

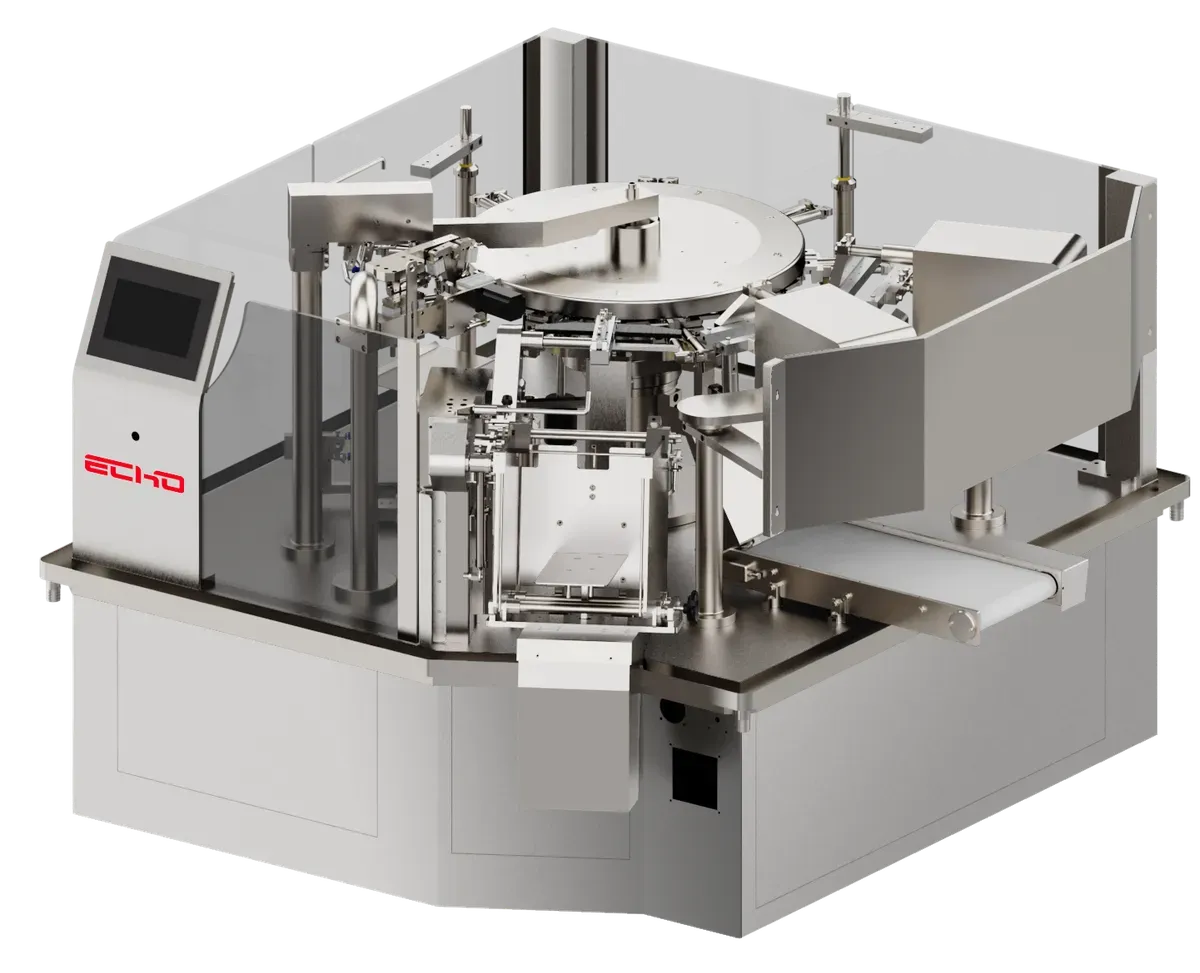

MR9-300R is our 9-station rotary premade pouch packaging machine. Most rotary premade pouch machines have 8 stations. We added one more station, so the machine can do double heat-sealing or give the sealing step a longer dwell time without shortening any other step. It packs aluminum foil bags, four-side seal bags, paper bags and other composite bags at 50 to 60 bags per minute.
Features
- High-speed machine platform with fully internal cam drive
- Frame is welded first, then CNC precision-machined, so the rotary table and every station stay aligned

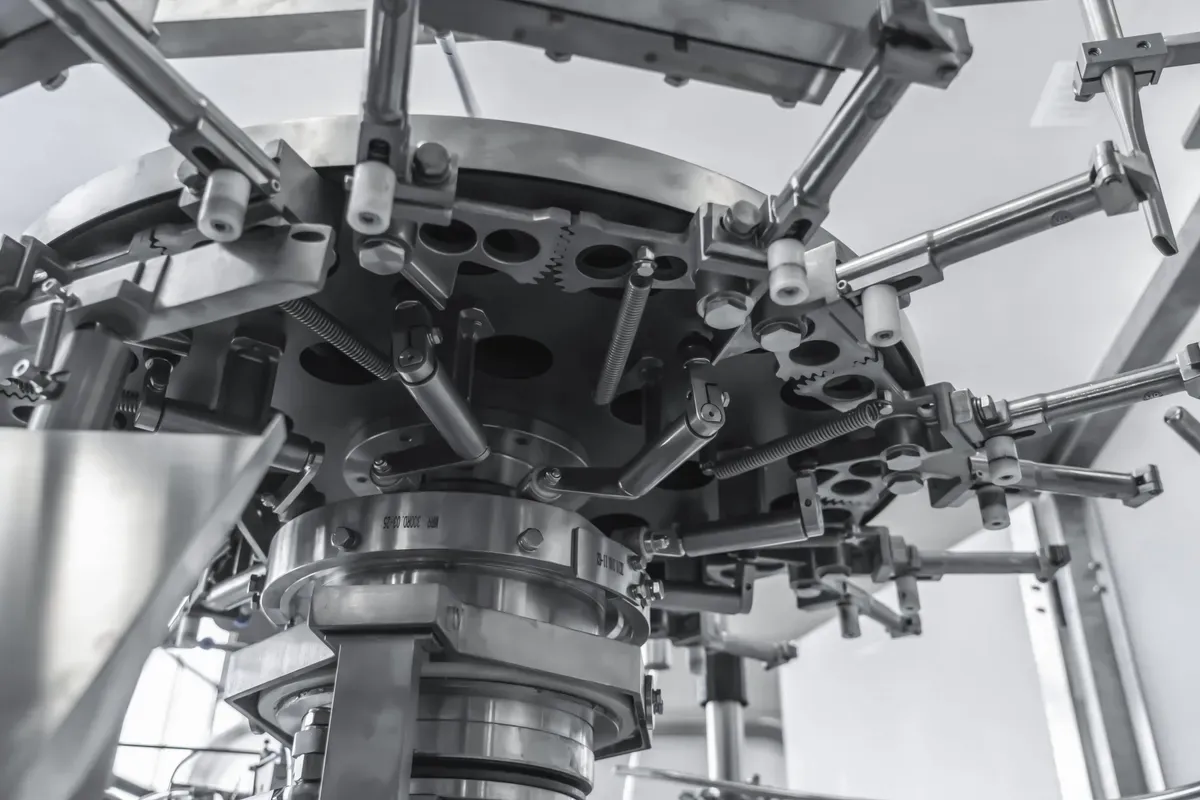

- Heavy-duty 175 cam indexer directly coupled to the turntable drive shaft
- Metered lubrication pump with high-pressure oil lines feeds every lubrication point
- The extra station allows double heat-sealing or a longer sealing dwell time without shortening any other step
- A cooling and reshaping station can be added to the cycle, which an 8-station machine cannot fit without losing another function
- After heat sealing, the bag passes a controlled cooling stage so the seal edge stays flat
- Each step in the cycle gets more time to complete, so parts take less impact load and wear less
Parameter
| Specification | |
|---|---|
| Bag Type | Aluminum foil bags, four side seal bags, paper bags and other composite bags |
| Bag Size | Width: 180 – 300mm, Length: 150 – 420mm |
| Filling Volume Capacity | 10 – 2000g |
| Packing Speed | 50 – 60 bags/min |
| Total Power | 380V 50HZ 6.5KW |
| Compressed Air Requirement | 0.5 – 0.8Mpa, 0.6 m³/min |
| Machine Dimension | 2950 × 2150 × 2300 mm |
Capacity & Filling Volume depends on the product status and filling weight.

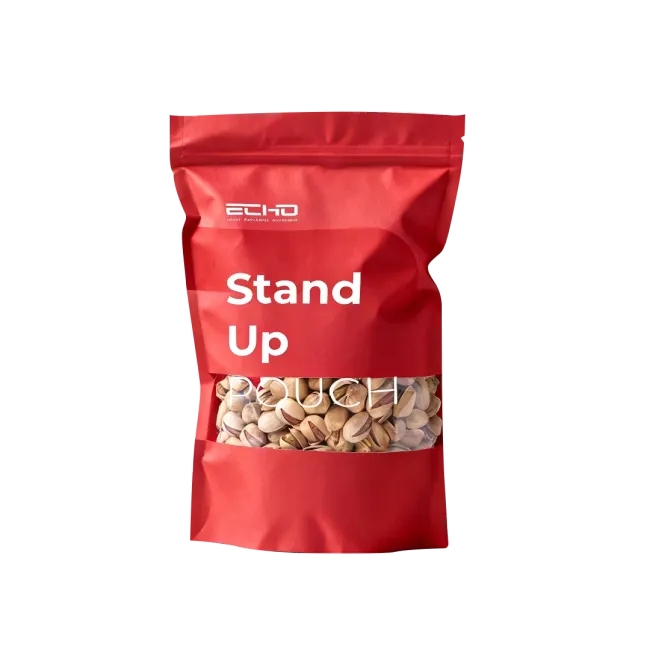

Bag Style
Machine Layout

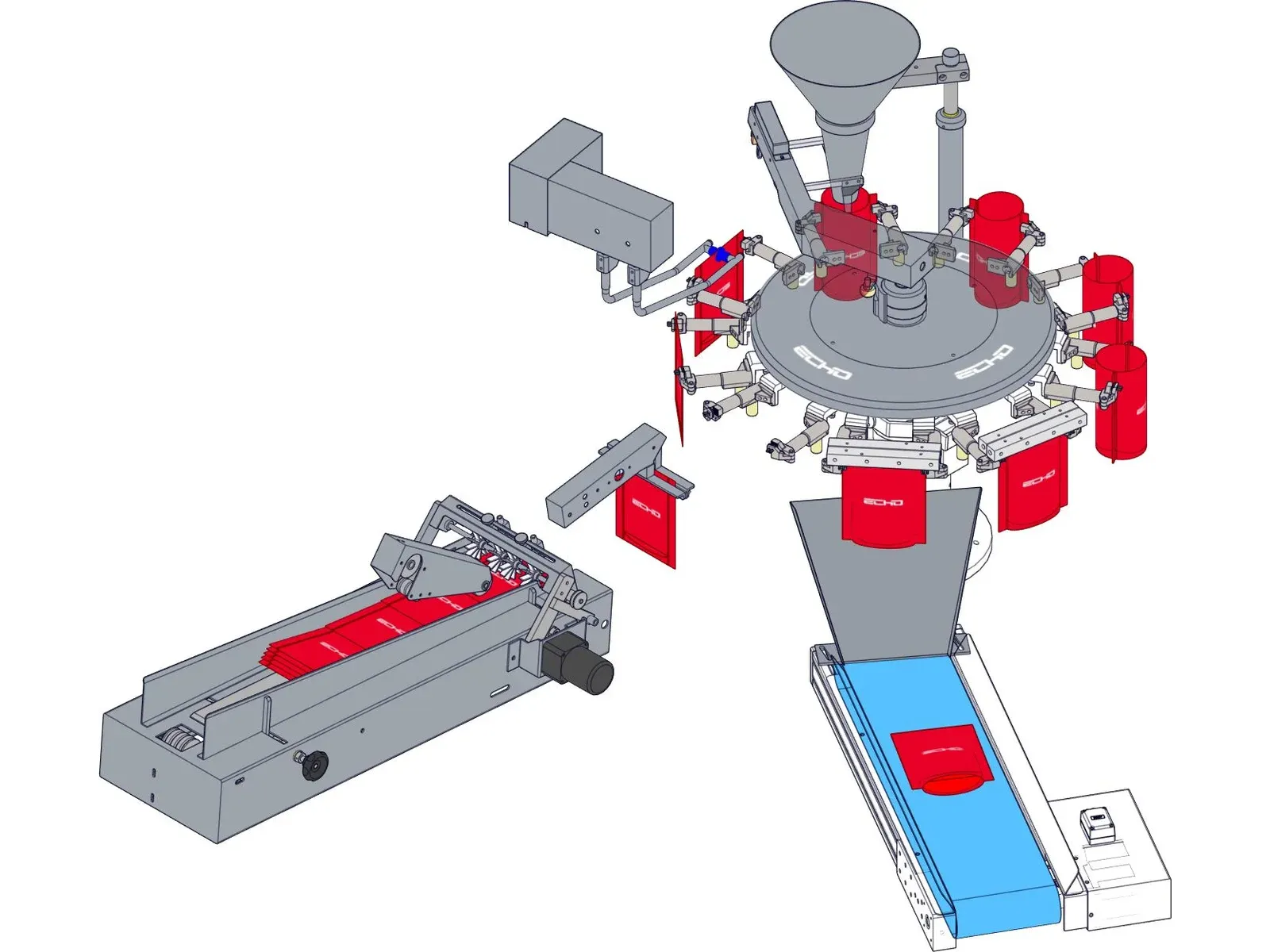

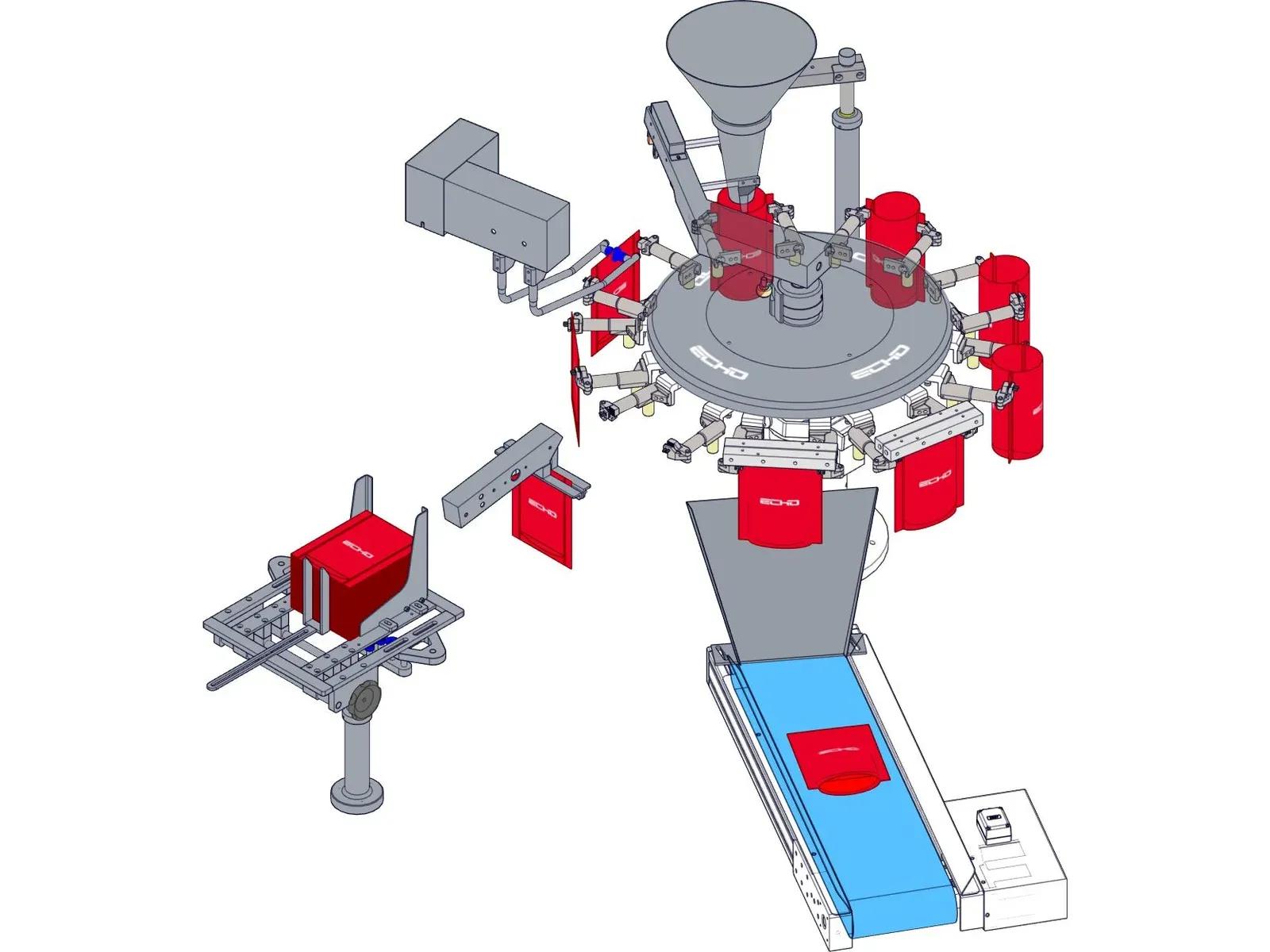

Two bag feeding layouts are available on the same rotary platform: a vertical bag magazine and a horizontal bag magazine. The drawing shows the bag path from the magazine to the rotary table, the filling and sealing stations around the table, and the outfeed conveyor that carries the finished pouches away.
The vertical magazine stands the bags upright and picks them from the side; the horizontal magazine lays the bags flat and feeds them in line with the machine. Both layouts use the same rotary sealing system, so the choice depends on bag style and how the line is arranged.
Snack Foods, Nuts & Dried Fruits, Coffee, Powder Products, Pet Food, Seasonings & Sauces, Pharmaceutical
